Custom Semi-Automatic Electrical Tabletop Capping Sealing Machine

High-Precision Capping for Versatile Packaging Needs

In liquid and container packaging, achieving the correct cap torque is a delicate balance. Too loose, and the product leaks or spoils during transit; too tight, and the consumer struggles to open the bottle, or the bottle threads become stripped and deformed.

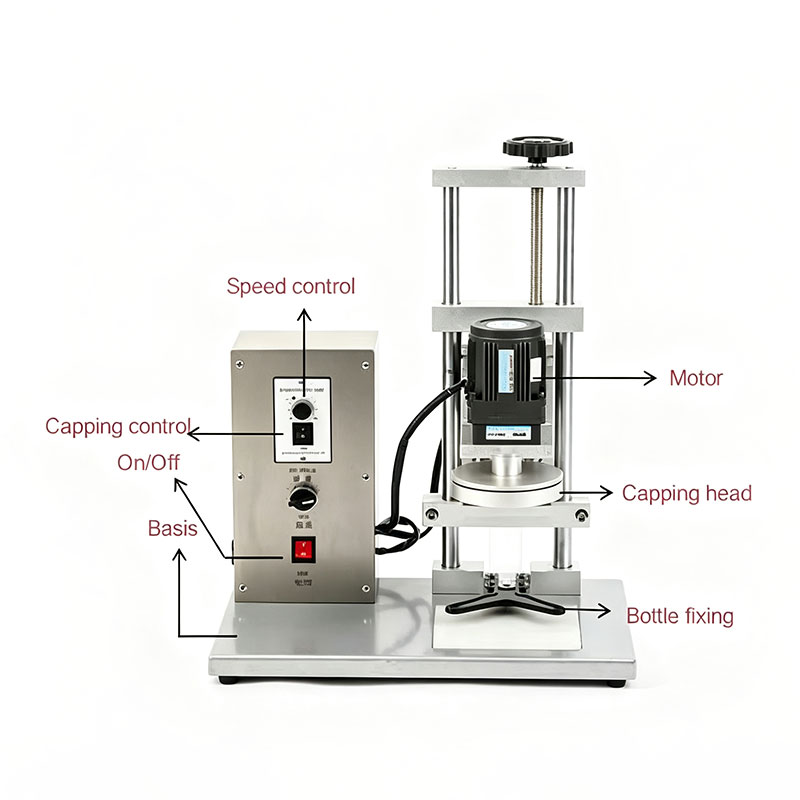

Our Semi-Automatic Electrical Tabletop Capping Sealing Machine replaces inconsistent manual hand-tightening with precision electrical and pneumatic mechanical control. Designed as a compact desktop unit, it easily integrates into small-to-medium production facilities, R&D labs, and cleanroom environments. By automating the downward pressure and rotational torque, this machine eliminates operator fatigue and guarantees standardized, leak-proof sealing across every single batch.

Core Product Advantages

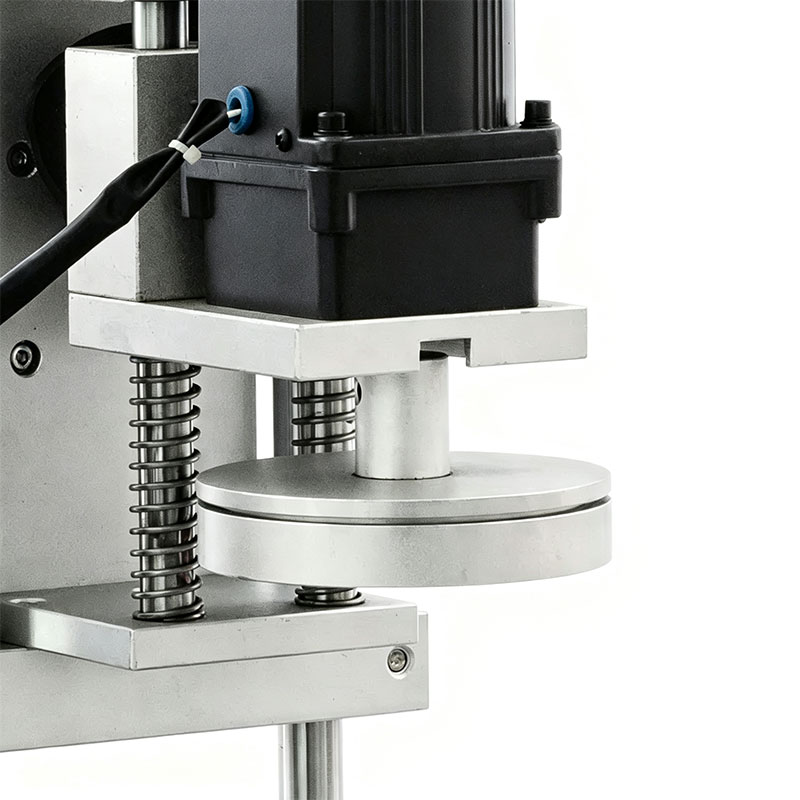

Adjustable Precision Torque Control: Equipped with an advanced friction-clutch mechanism or digital torque adjustment. Once the pre-set torque is reached, the capping chuck automatically stops spinning—preventing over-tightening, stripped threads, and cap surface abrasion.

Broad Container & Cap Compatibility: Features an easily adjustable height column and interchangeable capping chucks (silicone-lined molds, metal locking rollers, or magnetic claws). It seamlessly switches between round plastic bottles, glass jars, PE screw caps, aluminum ROPP (Roll-On Pilfer-Proof) caps, and metal lug/twist-off lids in minutes.

Secure Bottle Positioning Fixture: Incorporates an adjustable, non-slip container positioning tray or pneumatic gripping arms. This holds the bottle or jar firmly in place during the capping cycle, preventing container spinning, tipping, or liquid spilling—especially critical for lightweight PET bottles.

Compact & Ergonomic Operation: Built with a space-saving stainless steel tabletop footprint. Operators can choose between manual foot-pedal activation for paced operation or continuous automated sensor mode for higher-speed production output.

Technical Specifications

Machine Type: Semi-automatic electrical tabletop capping/sealing machine
Operation Modes: Foot-pedal switch activated or automatic sensor cycle
Applicable Cap Diameter: 10mm to 50mm, 30mm to 90mm (Customizable chucks available)
Applicable Bottle Height: 40mm to 300mm (Handwheel adjustable height column)
Capping Speed: 20 to 40 bottles per minute (Dependent on operator loading speed and cap type)
Power Supply: 110V or 220V, 50/60Hz, Single Phase (Low energy consumption)
Air Pressure Required: 0.4 - 0.6 MPa (Only required for pneumatic bottle-clamping or hybrid models)
Machine Construction: SUS304 Stainless Steel frame with anodized aluminum alloy components
Compatible Cap Types: Plastic screw caps, pump sprayers, trigger caps, aluminum ROPP caps, metal lug/twist-off caps, and child-resistant (CR) caps

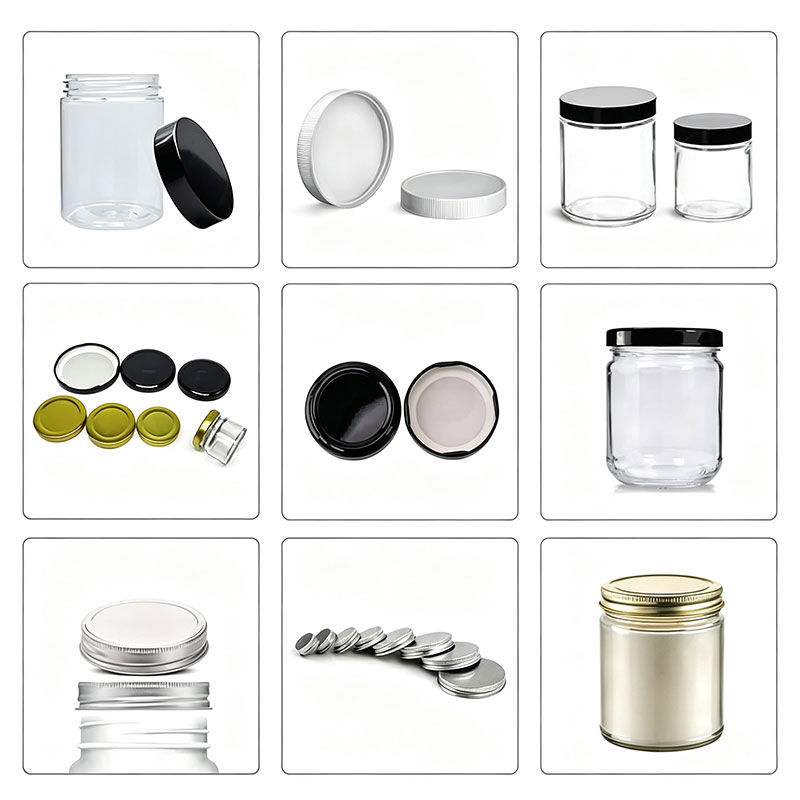

Compatible Containers: PET, PP, HDPE plastic bottles, glass bottles, and heavy-duty jars

The BlissPak Turnkey Synergy

A common failure in bottling and capping lines arises when the machine chuck does not properly match the taper, ribs, or material hardness of the cap. A rigid metal chuck will scratch a glossy cosmetic closure, while a generic silicone insert will fail to seal a heavy-duty metal lug cap.

BlissPak eliminates these mechanical mismatches. As a turnkey packaging solutions provider, we can supply your Custom Bottles and Jars, engineer the corresponding Cap Closures (Plastic, Aluminum, or ROPP), and CNC-machine the custom Capping Chucks and Silicone Liners directly alongside your Tabletop Capping Machine. We pre-set and test the machine's torque calibration using your physical bottles and caps before shipment, guaranteeing a plug-and-play, zero-leakage production line straight out of the crate.

FAQs

Q1: Will this capping machine scratch or damage our high-end metallic or painted cosmetic caps?
No. For delicate cosmetic closures, custom pump heads, or UV-coated caps, we supply specialized high-grade polyurethane or wear-resistant silicone chuck inserts. These inserts conform to the cap's shape and grip it with uniform friction, providing the exact torque required without leaving any scratch marks, scuffs, or surface deformation.

Q2: Can this single tabletop machine handle both small 10ml dropper bottles and large 500ml jars?
Yes. The machine is designed for rapid changeovers. By adjusting the handwheel on the vertical column, you can accommodate bottle heights from 40mm up to 300mm. To change cap sizes (e.g., switching from a 13mm dropper cap to an 80mm jar lid), you simply unscrew the quick-release capping chuck and swap in the appropriately sized silicone or metal tooling head—a process taking less than three minutes.

Q3: Do we need an external air compressor to operate this tabletop capping machine?
It depends on the specific configuration selected. Our pure electrical models rely solely on an electric motor for rotation and downward thrust and just plug into a standard electrical outlet. However, if you are capping lightweight empty PET bottles or smooth glass jars, we recommend our pneumatic-assist model, which uses compressed air (0.4–0.6 MPa) to power side-clamping cylinders that hold the container securely from spinning during the capping torque cycle.

1. Why should we purchase blister packing and sealing machinery from Blisspak instead of going directly to a machinery manufacturer?

A: As industry veterans with years of expertise in the blister packaging sector, we possess a profound understanding of forming and sealing processes, the physical properties of various substrates (such as PVC, PET, and aluminum foil), and high-precision mold design. While we do not directly manufacture the physical hardware, we have deeply integrated China’s most professional and top-tier blister machinery suppliers. This allows us to stand completely on your side, leveraging our multi-vendor supply chain to deliver tailored, optimized, and comprehensive production line solutions that match your specific requirements (such as food airtightness, pharmaceutical sterility, or irregular hardware packaging)—saving you from the high communication costs and rigid configurations associated with dealing with a single traditional factory.

2. What industry background and successful partnership experience does Blisspak have in this field?

A: To date, Blisspak has successfully supplied advanced blister packaging and sealing machinery to numerous stationery corporations, cosmetics brands, food processing plants, and medical device enterprises worldwide, building a proven track record of cross-industry implementation. Thanks to our long-term cultivation of the entire supply chain, we have established exclusive strategic alliances with multiple leading domestic manufacturers. Because of our continuous and centralized purchasing volume, the wholesale channel pricing we secure from these factories is significantly lower than the standard quotes given to individual overseas buyers, ensuring that we deliver expert-level equipment selection and premium quality while passing substantial cost advantages directly to you.

3. With so many machinery models on the market, how does Blisspak guarantee that the recommended equipment is the best fit for us?

A: We never blindly push a specific standard machine; instead, our engineering team conducts a meticulous cross-reference within our vetted supplier database based strictly on your primary production data—including 3D product dimensions, packaging materials, target output (PPM), budget constraints, and workshop floor layout. By optimizing technical specifications and cost structures across the supply chain, we precisely match and configure the most reliable, efficient, and cost-effective equipment for your specific application, ensuring seamless machine-to-product compatibility while eliminating any risk of capacity bottlenecks or resource waste.

4. If we change our product dimensions or packaging materials in the future, can the machinery adapt? How will future tooling be handled?

A: Multi-functionality and high operational flexibility are always our top priorities when customizing equipment with our partner factories. The blister packing and sealing machines we recommend feature a toolless, quick-changeover design, allowing non-specialized operators to switch product specifications within minutes to adapt easily to varying materials and sizes. Furthermore, backed by our robust in-house mold design and fabrication capabilities, whenever you develop a new product, you simply need to send us the samples or drawings; we will precision-engineer the compatible high-accuracy forming or sealing molds to ensure a perfect fit with your existing machine, providing you with lifelong, hassle-free tooling support.

5. As an equipment integrator, how does Blisspak guarantee cross-border quality control (QC) and after-sales technical support?

A: Before any equipment is packed for international shipment, our professional engineers personally conduct a rigorous Factory Acceptance Test (FAT) at the manufacturing facility, running continuous full-load production trials using your exact target packaging materials to guarantee that temperature, pressure, and sealing integrity are 100% compliant, backed by comprehensive video documentation. Post-delivery, we serve as your single point of contact for all after-sales needs, providing industry-standard warranties on core components. You will never have to navigate complicated communication barriers with individual factories; Blisspak's English-speaking technical support team responds immediately via remote video guidance, circuit schematic analysis, and expedited global parts shipping to completely eliminate your cross-border maintenance concerns.
