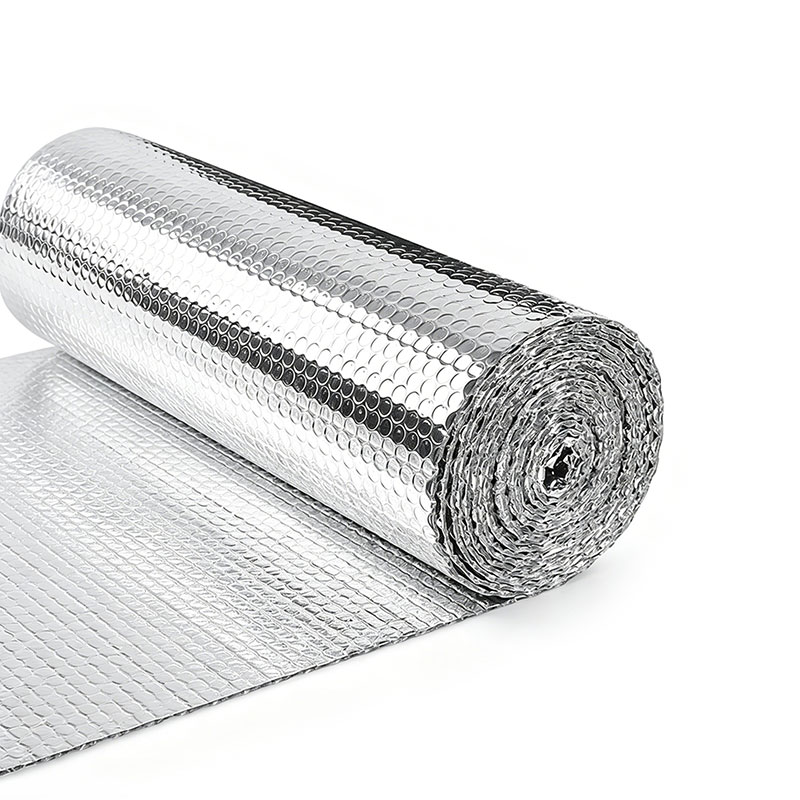

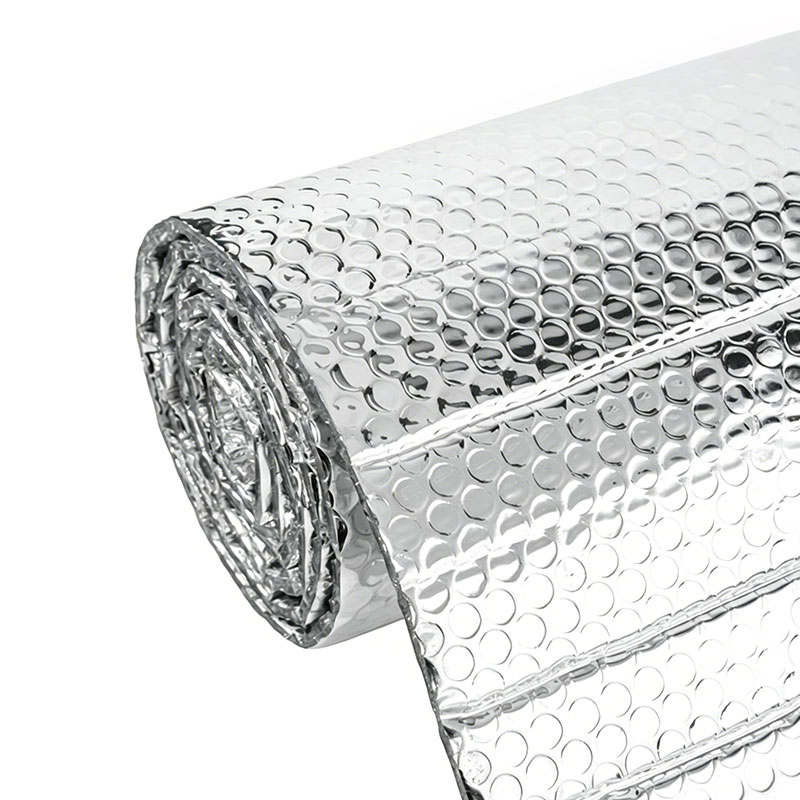

Construction Grade Aluminum Foil Bubble Reflective Insulation Roll

Advanced Thermal Management for Modern Construction

In standard building structures, the majority of summer heat gain and winter heat loss occurs through radiant heat transfer. Traditional fiberglass or foam insulation only slows down conductive heat, but it absorbs radiant heat. Our Custom Aluminum Foil Bubble Insulation Roll tackles the problem at the source.

By utilizing a high-purity aluminum surface, this construction-grade wrap acts as a powerful radiant barrier, reflecting up to 97% of the sun's radiant energy away from your building. Simultaneously, the encapsulated air within the robust PE bubble core serves as an exceptional thermal break, preventing conductive heat transfer and drastically reducing heating and cooling costs.

Core Product Advantages

• Dual-Action Insulation: Combines the high reflectivity of pure aluminum foil with the low thermal conductivity of encapsulated air bubbles, providing superior temperature regulation in extreme climates.
• Absolute Moisture & Vapor Barrier: Unlike fiberglass, which loses its insulating properties when wet, our foil bubble wrap is 100% waterproof. It acts as an impenetrable vapor barrier, preventing condensation, mold growth, and structural rot in walls and roofing systems.
• Heavy-Duty & Tear Resistant: Engineered for the demanding conditions of construction sites. The extruded PE bubble core provides excellent compressive strength, ensuring the bubbles do not pop when walked on or stapled during installation.
• Safe & Easy to Install: Completely non-toxic and non-carcinogenic. It requires no protective gear, masks, or gloves to install. It can be easily cut with a utility knife and fastened with standard industrial staples and foil tape.

Standard Structure: AL / Single Bubble / AL or AL / Double Bubble / AL (Customizable)
Foil Reflectivity: 95% to 97% pure radiant heat reflection
Bubble Core Material: High-density Polyethylene (HDPE/LDPE blend)
Bubble Diameter & Height: 10mm diameter x 4mm height (Standard) up to 25mm diameter x 10mm height
Roll Width: 1.0m, 1.2m, or 1.5m (Custom widths available)
Roll Length: 30m, 40m, or 50m (Custom lengths available)
Fire Retardancy: Class A / Class 1 fire rating (Fire-retardant additives available upon request)
Applications: Roofing, wall cavities, crawl spaces, pole barns, metal buildings, and HVAC duct wrapping

Frequently Asked Questions (FAQs)

Q1: What is the difference between Single Bubble and Double Bubble insulation?

Single bubble insulation features one layer of encapsulated air, making it thinner and highly flexible for tight spaces like HVAC ducts. Double bubble insulation features two stacked layers of air bubbles, providing a higher structural rigidity and a greater thermal break (higher R-value), ideal for heavy-duty roofing and wall applications.

Q2: Does this insulation wrap have a specific R-value?

Unlike traditional bulk insulation, radiant barriers are measured by their reflectivity rather than strict R-value. However, when installed correctly with a dead air space facing the foil side, our bubble insulation system can contribute significantly to the overall R-value of the building envelope, depending on the specific structural assembly.

Q3: Can this material be used as a standalone insulation solution?

In moderate climates or for specific applications like metal pole barns and storage sheds, it performs exceptionally well on its own. In extreme climates or residential homes, it is best utilized in conjunction with bulk mass insulation (like fiberglass or foam) to provide comprehensive protection against all three types of heat transfer (radiant, conductive, and convective).

Q4: Is the aluminum foil prone to oxidation or tearing during installation?

No. Our construction-grade rolls utilize a reinforced aluminum laminate. The foil is often coated with a micro-thin anti-oxidation layer to maintain its reflectivity over decades, and the lamination to the tough PE bubble core prevents tearing around staple points.

Q5: Can you manufacture custom roll sizes and structures for large projects?

Yes. As a primary manufacturer, we can fully customize your Aluminum Foil Bubble Insulation Roll. We can adjust the roll width and length to minimize seams on your job site, add anti-glare coatings, or produce one side with white PE film instead of aluminum for aesthetic interior finishes.

The Physics of Radiant Barriers in Construction

To truly understand the value of Construction Grade Reflective Bubble Insulation Wrap, one must understand how heat moves. Heat transfers in three ways: conduction (touch), convection (air movement), and radiation (electromagnetic waves). The sun beats down on a metal roof, superheating it via radiation. The roof then radiates that heat downward into the attic space. Traditional insulation simply absorbs this heat until it becomes saturated, eventually pushing the heat into the living space.

Our aluminum foil bubble wrap acts as a mirror. When installed just below the roofline, it immediately bounces 97% of that radiant heat back upward, preventing the attic from superheating in the first place. This dramatically reduces the workload on HVAC systems, extending their lifespan and lowering electricity bills.

Why the Quality of the Bubble Core Matters

Not all bubble wrap is created equal. Cheap, packaging-grade bubble wrap is made from thin LDPE that easily pops under pressure and degrades rapidly when exposed to fluctuating temperatures. Our construction-grade insulation utilizes a proprietary blend of high-density and low-density polyethylene (HDPE/LDPE). This extrusion process creates a structurally rigid air pocket that withstands the mechanical stress of construction workers leaning on it, stapling it, and pulling it taut across rafters. Furthermore, the trapped air will not diffuse out over time, ensuring your building's thermal break remains intact for the lifespan of the structure.
