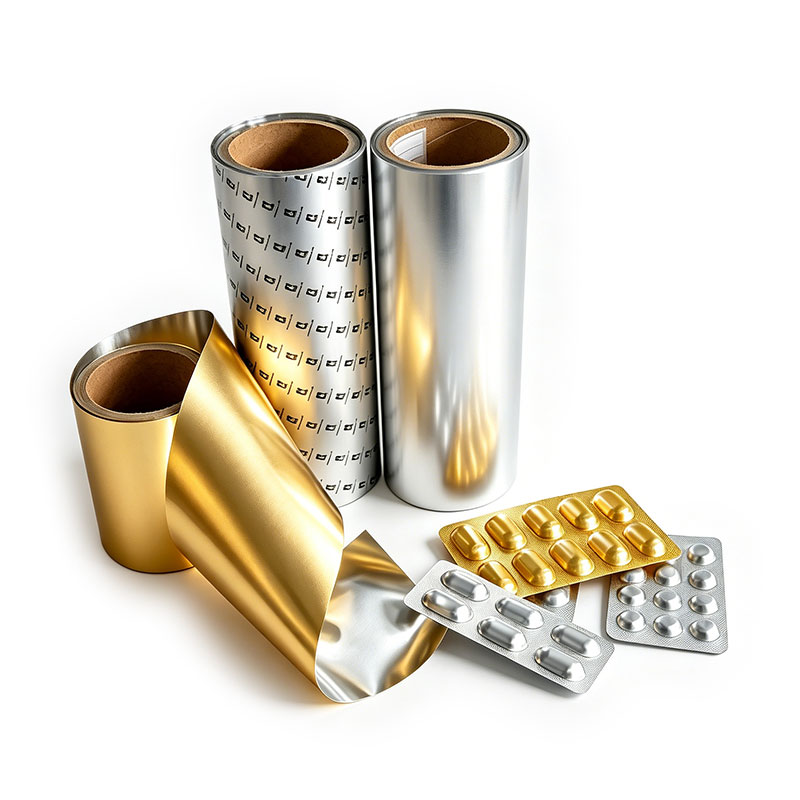

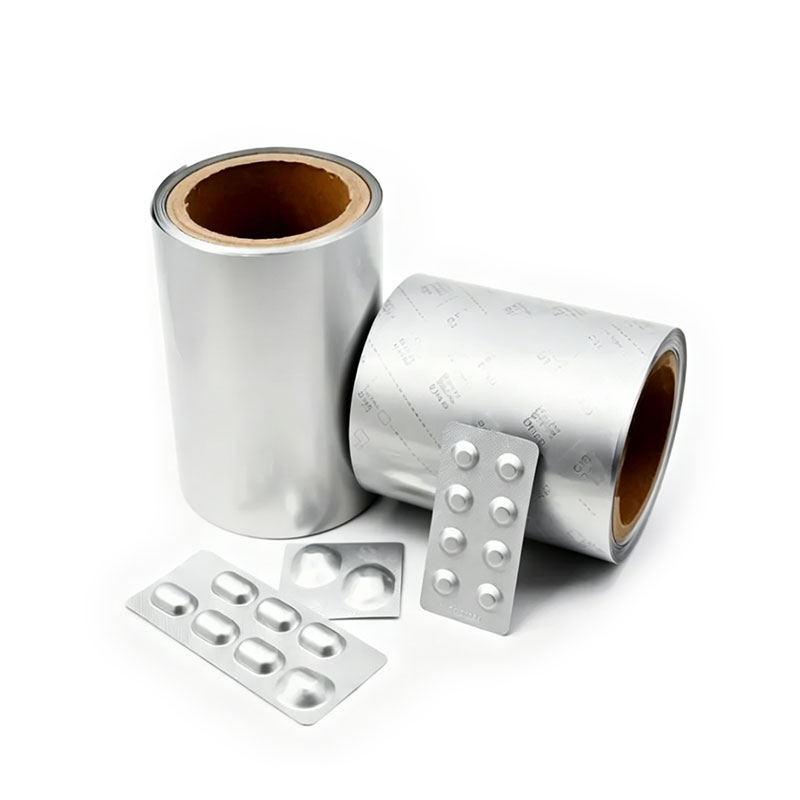

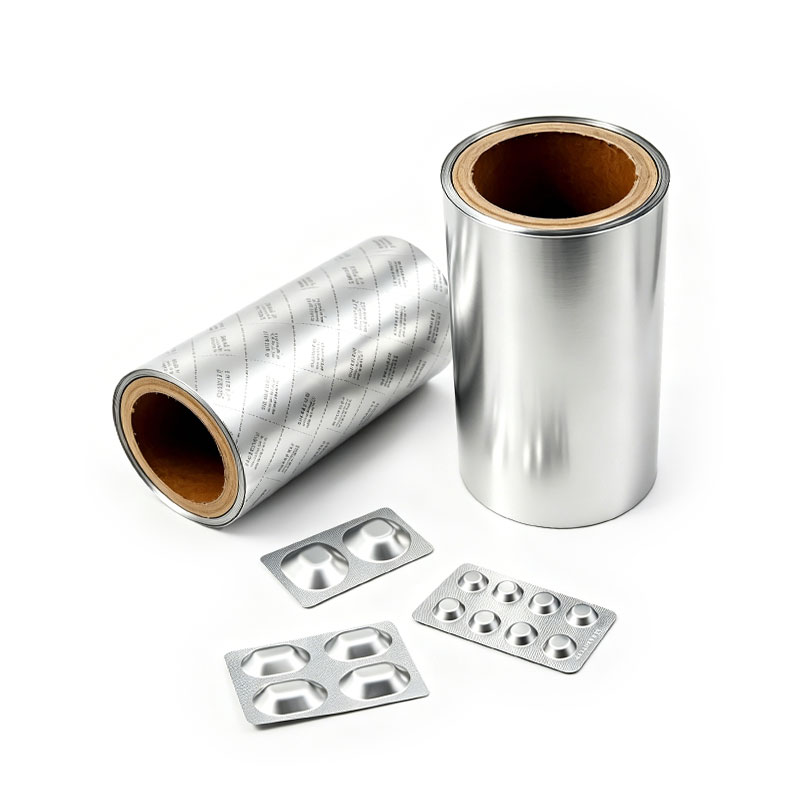

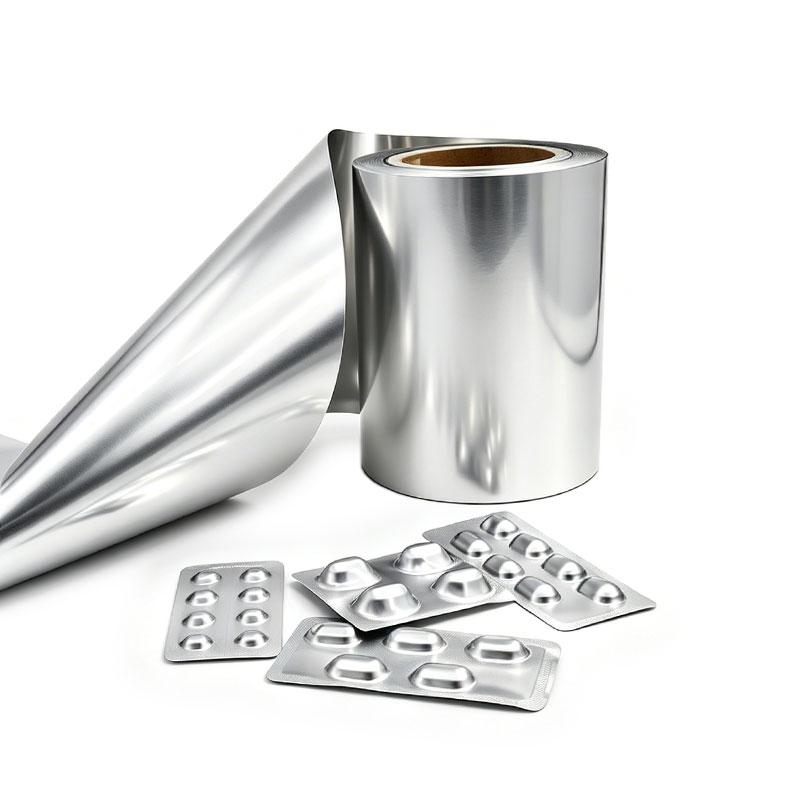

Pharmaceutical Aluminum Blister Foil Jumbo Roll

Uncompromised Barrier Protection for Medical Packaging

In the pharmaceutical industry, the integrity of your packaging directly impacts the efficacy of the medication. Our 8011 H18 PTP Aluminum Blister Foil Jumbo Rolls are manufactured under stringent cleanroom conditions to provide a pinhole-free, hermetic seal. Designed to serve as the ultimate lidding film, this foil ensures that capsules, tablets, and pills remain fully protected from environmental degradation throughout their shelf life.

Whether you are a packaging converter or a large-scale pharmaceutical manufacturer, our jumbo rolls offer the consistency, tensile strength, and superior sealability required for high-volume automated production.

Core Product Advantages

Optimal Temper for Push-Through Convenience: Processed in the H18 (Hard) temper, our foil offers excellent tensile strength while remaining brittle enough to allow patients to push tablets through the backing effortlessly, without tearing the entire blister.

Superior Heat-Seal Coating (HSL): Pre-coated with a highly responsive thermoplastic adhesive lacquer. It activates instantaneously upon heating to form a fiber-tearing, hermetic bond with rigid plastic films including PVC, PVDC, and PP.

Exceptional Printability: The outer surface is coated with a high-quality protective primer (OP), engineered to accept rotogravure and flexographic inks flawlessly. This ensures sharp, high-resolution printing of brand logos, dosage instructions, and critical safety warnings.

Pinhole-Free Manufacturing: Rolled using advanced tension-control technology to eliminate micro-pinholes, guaranteeing an absolute barrier against water vapor transmission (WVTR) and oxygen transmission (OTR).

Technical Specifications

The BlissPak Turnkey Synergy

Procuring aluminum foil in isolation often leads to compatibility issues during the sealing process. As a comprehensive turnkey solutions provider, BlissPak perfectly calibrates the heat-seal lacquer on our 8011 H18 PTP Jumbo Rolls to match the exact thermal parameters of our Automated Blister Packing Machines and the surface tension of our Pharmaceutical PVC/PVDC Rigid Films. By sourcing your complete packaging ecosystem from us, you eliminate machine downtime, reduce material scrap, and guarantee consistent, compliant seals from the very first run.

Frequently Asked Questions (FAQs)

Q1: Why is the H18 temper preferred for PTP blister foil?

The H18 temper indicates a fully hard state. In pharmaceutical packaging, this specific hardness ensures that the foil bursts cleanly and accurately when a patient presses the tablet from the other side, preventing the foil from stretching or peeling away from the blister cavity.

Q2: Can this foil be sealed directly to PVDC-coated PVC films?

Yes. Our heat-seal lacquer (VC layer) is specifically formulated to create an aggressive, permanent bond with standard PVC as well as high-barrier PVDC-coated rigid films under standard machine heat and pressure settings.

Q3: Are these jumbo rolls ready for direct printing?

Absolutely. The exterior surface is treated with a specialized protective primer (OP) that is compatible with both solvent-based and water-based inks, ensuring excellent ink adhesion for high-speed rotogravure or flexo printing lines.

Q4: What is the minimum order quantity (MOQ) for jumbo rolls?

For standard 8011 H18 unprinted jumbo rolls, our MOQ is typically 1 metric ton. For custom thicknesses or highly specialized coating weights, the MOQ may vary. Please consult our technical sales team for precise tiering.

Q5: How should the PTP aluminum foil be stored to maintain its sealing properties?

To preserve the integrity of the heat-seal lacquer and primer, the foil rolls should be stored in a clean, dry environment, away from direct sunlight and heat sources, ideally at a temperature between 15°C and 25°C with a relative humidity below 60%.

Q1. Are you a trader or direct factory?

We are a real factory with more than 20 years experience in producing blister packaging.

Q2. What are your main products?

We design and manufacture a full range of custom packaging solutions, including food packaging (bakery, takeout, drink, meat, seafood, supermarket etc.), as well as electronic, cosmetics, agricultural packaging and so on, offering one-stop services from design and mold development to production.

Q3. What about delivery time?

1-3 working days for proofing. 7-15 working days for quality quantity depends on the order quantity after you confirm the sample.

Q4. How can I get a quote for customized products?

The exact price will be determined based on your specific requirements, including the product's dimensions (length, width, height, thickness), material selection, order quantity, packaging method, and any printing or logo customization needs.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
