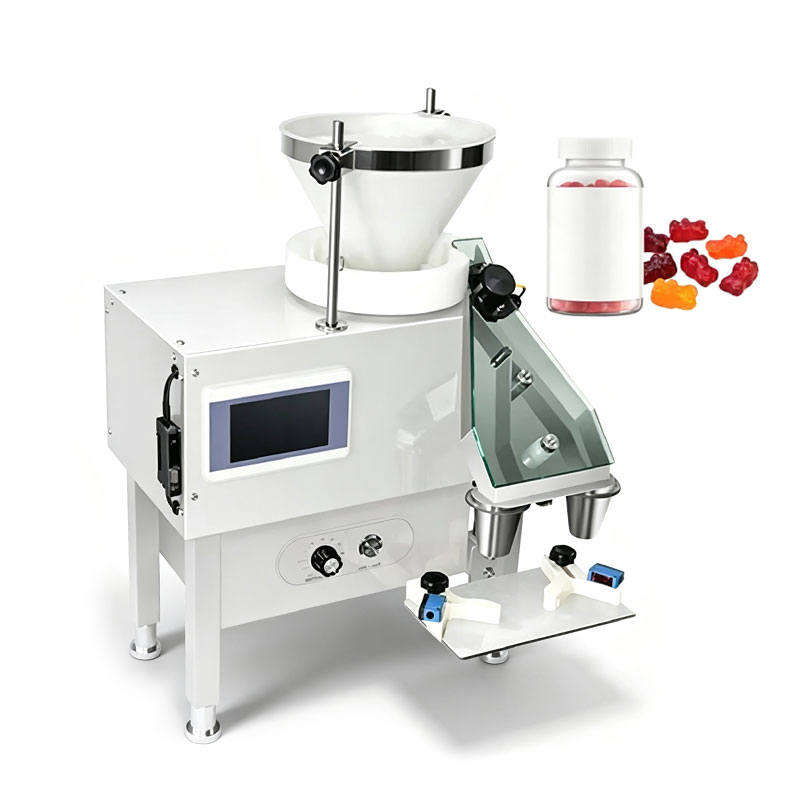

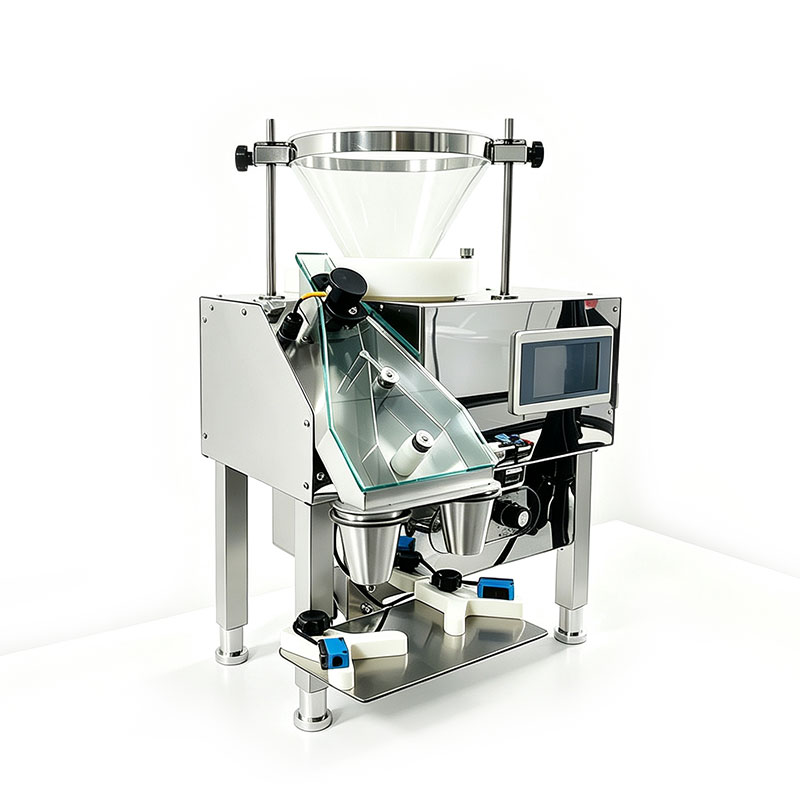

Semi-Automatic Electronic Tablet Capsule Candy Counting and Packing Machine
Product Overview:
High-Precision Vibratory Counting & Bottling Solutions for Pharma and Confectionery. Eliminate costly counting errors and accelerate your bottling process with our Semi-Automatic Electronic Tablet and Capsule Counting Machine. Engineered with multi-stage vibratory feeding tracks and high-penetration infrared optical sensors, this desktop unit accurately counts and dispenses hard/soft capsules, pills, coated tablets, and gummy candies with >99.97% accuracy. Built from SUS304/316 stainless steel with toolless disassembly, it is fully GMP compliant and seamlessly integrates into small-to-medium bottling lines.
Inquiry Email: sales@blisspak.com
Semi-Automatic Electronic Tablet Capsule Candy Counting and Packing Machine Details
Precision Counting for Pharmaceuticals, Nutraceuticals, and Confectionery
In product bottling and packaging, dosing accuracy is critical. Overfilling containers wastes expensive active ingredients, while underfilling leads to regulatory non-compliance, customer dissatisfaction, and brand recalls. Traditional manual or mechanical disc counting methods are slow, hygienic hazards, and prone to severe error rates—especially when handling odd-shaped gummies or dusty tablets.
Our Semi-Automatic Electronic Tablet and Capsule Counting Machine bridges the gap between manual labor and expensive high-speed rotary lines. Utilizing advanced photoelectric sensing technology, this compact desktop unit automates the counting and bottling workflow. It provides pharmaceutical manufacturers, supplement brand owners, and confectionery packers with a versatile, cleanroom-ready solution capable of handling diverse product shapes and sizes without requiring expensive custom change parts.

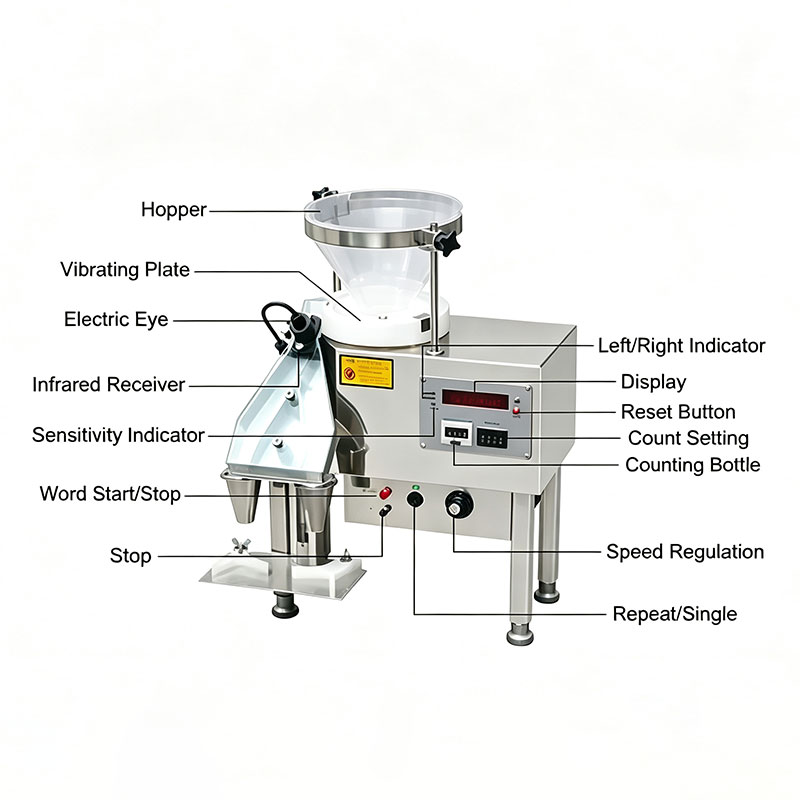

Core Product Advantages
Multi-Stage Vibratory Feeding Tracks: Equipped with electromagnetic vibratory channels that gently shake and separate overlapping tablets, pills, or sticky gummies. This ensures products enter the counting drop-chute in a single, well-spaced line, completely preventing jamming and miscounts.
High-Penetration Infrared Optical Sensors: Utilize advanced anti-dust infrared photoelectric sensors. The system easily recognizes and accurately counts even difficult products, including highly transparent softgels, dark-colored capsules, sugar-coated chewing gums, and dusty calcium tablets.
100% GMP Compliant & Cleanroom Ready: Constructed entirely from food-grade and pharmaceutical-grade SUS304/SUS316 stainless steel. The feeding hoppers, vibratory tracks, and discharge nozzles feature a quick-release design, allowing operators to perform toolless disassembly for thorough cleaning and cross-contamination validation in under 5 minutes.
Intelligent PLC Touchscreen Operation: Features an intuitive HMI touchscreen display that allows operators to store up to 10+ custom batch recipes. Simply select the product type, set the target count per bottle (e.g., 30, 60, 100 pcs), and the machine automatically controls the vibratory feeding speed and chute gates.
Technical Specifications
Machine Type: Semi-automatic electronic vibratory counting and bottling machine
Applicable Products: Hard/soft capsules (Size 000# to 5#), pills, coated tablets, soft gels, gummy candies, chewing gums, and seeds (Diameter: 3mm to 25mm)
Counting Speed: 500 to 3,000 pieces per minute (Varies based on product size and channel configuration, e.g., 8, 12, or 16 channels)
Counting Accuracy: > 99.97% (Industry-leading photoelectric detection)
Number of Feeding Channels: 8 to 16 vibrating tracks (Customizable)
Bottle/Bag Capacity Range: 1 to 9,999 pieces per bottle/sachet (Digitally adjustable)
Power Supply: 110V / 220V, 50/60Hz, Single Phase (Low energy consumption)
Machine Construction: SUS304 Stainless Steel main frame; SUS316 contact parts available upon request
The BlissPak Turnkey Synergy
A standalone counting machine solves only one step of the packaging puzzle. If the discharge nozzle doesn't fit your bottle neck, pills spill onto the floor; if your caps aren't sealed properly, the freshly counted nutraceuticals absorb moisture and degrade.
BlissPak provides a complete turnkey bottling ecosystem. We supply the Counting Machine, the Plastic/Glass Bottles, our Semi-Automatic Tabletop Capping Machines, and our Induction Foil Sealers. By engineering these systems together, we custom-match the discharge funnel of our counter to the exact neck dimensions of your BlissPak bottles. This guarantees zero product spillage, seamless container hand-offs, and an error-free bottling line straight out of the box.
1. Why should we purchase blister packing and sealing machinery from Blisspak instead of going directly to a machinery manufacturer?
A: As industry veterans with years of expertise in the blister packaging sector, we possess a profound understanding of forming and sealing processes, the physical properties of various substrates (such as PVC, PET, and aluminum foil), and high-precision mold design. While we do not directly manufacture the physical hardware, we have deeply integrated China’s most professional and top-tier blister machinery suppliers. This allows us to stand completely on your side, leveraging our multi-vendor supply chain to deliver tailored, optimized, and comprehensive production line solutions that match your specific requirements (such as food airtightness, pharmaceutical sterility, or irregular hardware packaging)—saving you from the high communication costs and rigid configurations associated with dealing with a single traditional factory.
2. What industry background and successful partnership experience does Blisspak have in this field?
A: To date, Blisspak has successfully supplied advanced blister packaging and sealing machinery to numerous stationery corporations, cosmetics brands, food processing plants, and medical device enterprises worldwide, building a proven track record of cross-industry implementation. Thanks to our long-term cultivation of the entire supply chain, we have established exclusive strategic alliances with multiple leading domestic manufacturers. Because of our continuous and centralized purchasing volume, the wholesale channel pricing we secure from these factories is significantly lower than the standard quotes given to individual overseas buyers, ensuring that we deliver expert-level equipment selection and premium quality while passing substantial cost advantages directly to you.
3. With so many machinery models on the market, how does Blisspak guarantee that the recommended equipment is the best fit for us?
A: We never blindly push a specific standard machine; instead, our engineering team conducts a meticulous cross-reference within our vetted supplier database based strictly on your primary production data—including 3D product dimensions, packaging materials, target output (PPM), budget constraints, and workshop floor layout. By optimizing technical specifications and cost structures across the supply chain, we precisely match and configure the most reliable, efficient, and cost-effective equipment for your specific application, ensuring seamless machine-to-product compatibility while eliminating any risk of capacity bottlenecks or resource waste.
4. If we change our product dimensions or packaging materials in the future, can the machinery adapt? How will future tooling be handled?
A: Multi-functionality and high operational flexibility are always our top priorities when customizing equipment with our partner factories. The blister packing and sealing machines we recommend feature a toolless, quick-changeover design, allowing non-specialized operators to switch product specifications within minutes to adapt easily to varying materials and sizes. Furthermore, backed by our robust in-house mold design and fabrication capabilities, whenever you develop a new product, you simply need to send us the samples or drawings; we will precision-engineer the compatible high-accuracy forming or sealing molds to ensure a perfect fit with your existing machine, providing you with lifelong, hassle-free tooling support.
5. As an equipment integrator, how does Blisspak guarantee cross-border quality control (QC) and after-sales technical support?
A: Before any equipment is packed for international shipment, our professional engineers personally conduct a rigorous Factory Acceptance Test (FAT) at the manufacturing facility, running continuous full-load production trials using your exact target packaging materials to guarantee that temperature, pressure, and sealing integrity are 100% compliant, backed by comprehensive video documentation. Post-delivery, we serve as your single point of contact for all after-sales needs, providing industry-standard warranties on core components. You will never have to navigate complicated communication barriers with individual factories; Blisspak's English-speaking technical support team responds immediately via remote video guidance, circuit schematic analysis, and expedited global parts shipping to completely eliminate your cross-border maintenance concerns.
